1.What is Interactive Projector?
Q10 pro is an all-in-one interactive projector that can realize projector into a multi-touch board.
To work with it, you only need to open the projector power and press the red button on the surface of the projector to finish the 4 point calibration, and then you can do anything what you want on the whiteboard with our e-pen. Such as drawing pictures, playing games, presentation, and so on...no installation of software or driver is needed.

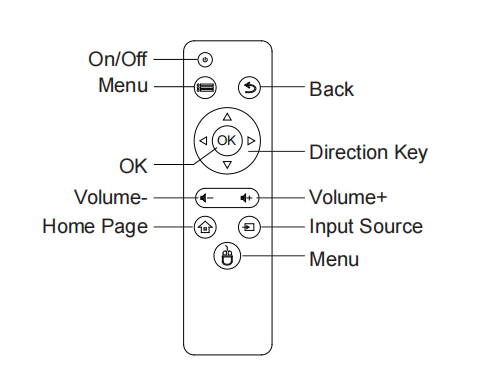

2.Parts and Functions of Projector
3.Specifications
Q10 PRO | |
Model | Q10 PRO |
Lamp: | LED Lamp |
Lens | Manual Correction |
Brightness: | 9800 Lumen |
Weight | 3.71kg |
Projection Distance: | 1.8-5m |
Operation System: | Android 9 |
Projected Dimension: | 40-120 inches |
Light Source: | LED |
Projective Mode: | Throwing,Ceiling,Back Projection |
Style: | LCD |
Contrast Ratio: | 10000:1 |
Resolution: | 1920x1080dpi |
Lamp: | LED Lamp |
Built-in Speaker: | YES |
ANSI Lumen: | ±500 |
Screen Scale: | 4:3/16:9 |
Use: | Business & Education, HOME THEATER |
Infrared pen | |
Model | P20B |
Signal source | 940nm infrared |
Nib trigger mode | Omni-directional pressure trigger |
Lateral sensitivity | < 35g |
Dynamic sensitivity | <0.8mm |
Power source | Supper capacitor |
Charging method | Micro USB |
Charging voltage range | 4.5V~5.5V |
Charging time | ≤3 minutes |
Rechargeable times | No limit |
Full power run time | 1 to 2 hours for normal use |
Charge retention time | 72 hours |
Nib trigger life circle | >1 million |
Volume | Length 18cm；Diameter 13.5mm |
Weight | 27g |
4. Packaging
packaging |
Q10 pro x 1 |
Power cable x 1 |
VGA cable x 1 |
HDMI cable x 1 |
AV cable x 1 |
Remote control x 1 |
Ceiling Screw x 1 |
P20B Pen x 1 |
Wireless dongle |
Packaging list
Q1Opro*1 Power cable *1 VGA cable*1
HDMI cable*1 AV cable*1 Remote controller*1
E-PEN and charging cable *1 Connection screw*1 Wireless dongle*1
5. Interactive Function
When you use the interactive function for the first time or the device is moved after last calibration, you need to do calibration.
Under the Android system, when the open the projector successfully, and then press the red calibration button on the front of the projector, and release it after 2 seconds. A beep will be heard. At this point, 4-corner calibration will be activated. Press the pen tip on 4 corners of the display area by sequence from 1 to 4 to finish the calibration. Please note that a beep must be heard before you move to the next corner. After calibrating successfully, you will hear two short beeps. Then you can use the product.
Wireless dongle
If you want to connect to other devices such as computer, then wireless connection is a good choice.
Firstly connect computer to the projector, secondly connect the dongle to the computer, and then it can start to use!
